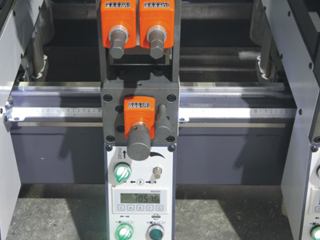

HB5KD woodworking drilling machine (Drawer plate drilling machine double positioning)
Woodworking row drill series
Product details
Note: Hualun Machinery to product specifications and design details continue to study and improve, the above specifications are subject to change without prior notice.
Product advantage
Product application:CNC drilling center suitable for diversified, complex and continuous machining

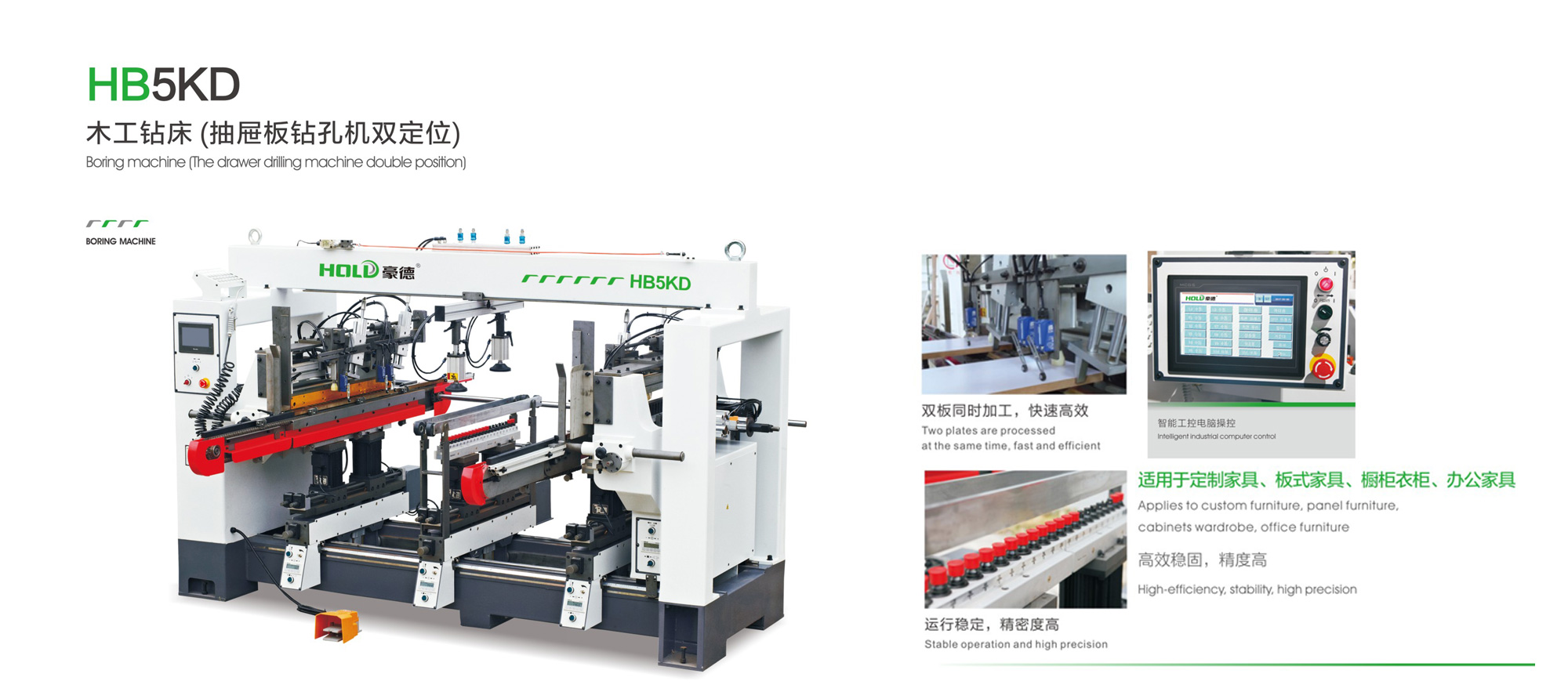

HB5KD
Woodworking drilling machine (drawer plate drilling machine double positioning)
Suitable for custom furniture, panel furniture, cabinets and wardrobes, office furniture
Efficient and stable, high precision
Configuration description
Technical parameter
| Equipment type | HB5K | HB5KD |
|---|---|---|
| Drill shaft spacing | 32mm | 32mm |
| Horizontal bit count | 21x2 | 21x2 |
| Vertical bit count | 21x3 | (11+11)x3 |
| Feeding motor power | 1.5kw | 1.5kw |
| Feed frequency | 20 pieces /min | 20 pieces /min |
| Horizontal drill bank power | 2x1.5kw(Two levels) | 2x1.5kw(Two levels) |
| Vertical drill bank power | 1.5kw | 2x1.1kw(Double vertical) |
| Motor speed | 2800rpm | 2800rpm |
| Maximum vertical drilling depth | 40mm | 40mm |
| Maximum horizontal drilling depth | 40mm | 40mm |
| Minimum workpiece width (X axis) | 350mm | 350mm |
| Maximum workpiece width (X axis) | 1400mm | 1400mm |
| Maximum machining thickness (Z-axis) | 40mm | 40mm |
| Workpiece length (Y-axis) | 40-280mm（two-piece）40-580mm（simplex） | 40-280mm（two-piece）40-580mm（simplex） |
| Overall dimension | 2750x2250x1700mm | 2750x2250x1700mm |
