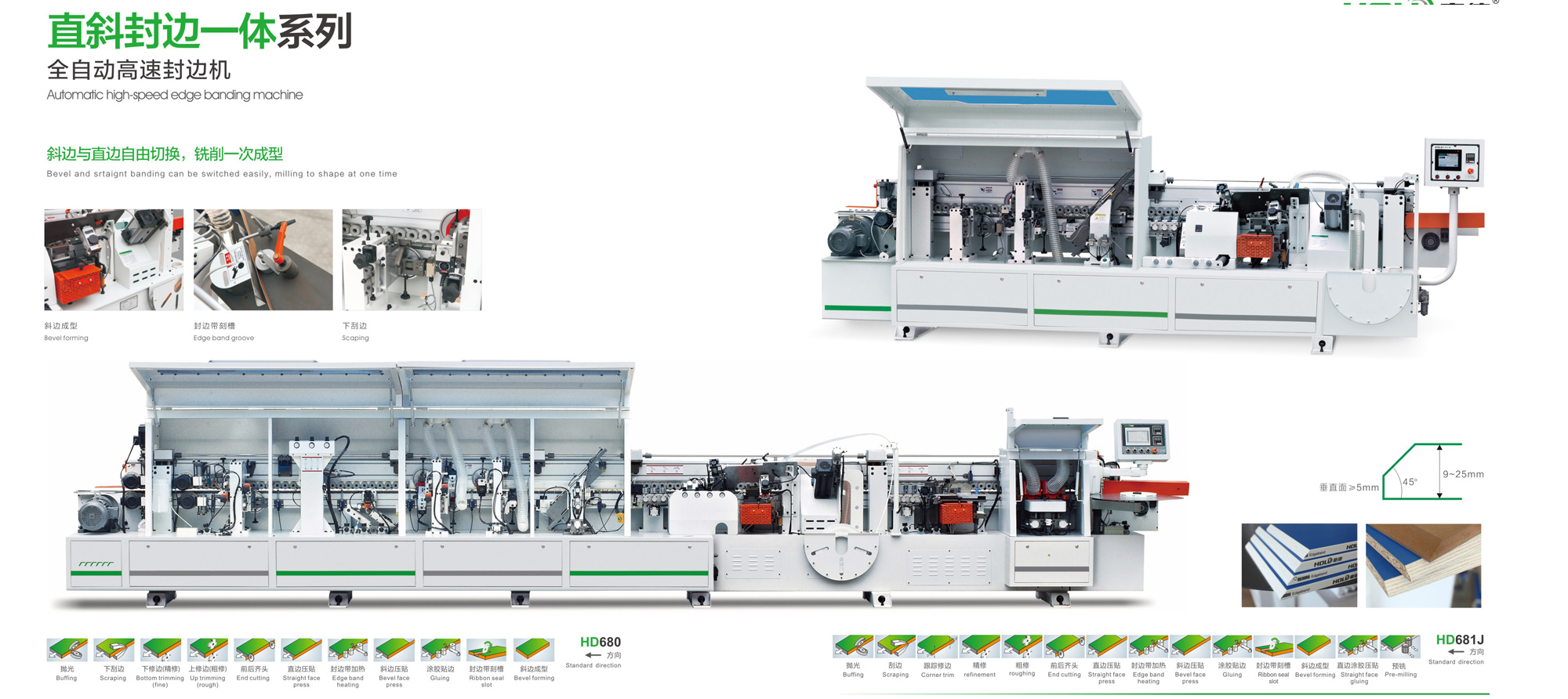

Straight oblique edge sealing integrated series automatic high speed edge sealing machine
Automatic edge sealing machine series
Product details
Note: Hualun Machinery to product specifications and design details continue to study and improve, the above specifications are subject to change without prior notice.
Product advantage
Product application:Suitable for custom furniture, panel furniture, cabinets and wardrobes, office furniture
Automatic high speed edge sealing machine
The beveled edge and the straight edge are freely switched, and the baht is cut once
Technical parameter
| 设备型号 Equipment type | HD681J | HD680 |
|---|---|---|
| 电动升降 Electric lift | 有 There are | 有 There are |
| 总功率 Gross power | 21.5kw | 12kw |
| 外形尺寸 Overall dimension | 9120x900x1700mm | 5500x900x1600mm |
| 进给速度 Feed rate | 斜边12m/min;直边12/20/23m/min Hypotenuse 12m/min; Straight edge 12/20/23m/min | 12m/min |
| 封边带厚度 Edge band thickness | 斜边0.4-1.5mm;直边0.4-3mm Bevel side 0.4-1.5mm; Straight edge 0.4-3mm | 0.4-1.5mm |
| 板料厚度 Sheet thickness | 斜边9-25mm;直边10-60mm Bevel side 9-25mm; Straight edge 10-60mm | 9-25mm |
| 板料长度 Sheet length | ≥120mm | ≥120mm |
| 板料宽度 Sheet width | ≥120mm | ≥80mm |
| 工作气压 Working pressure | 0.6Mpa | 0.6Mpa |
