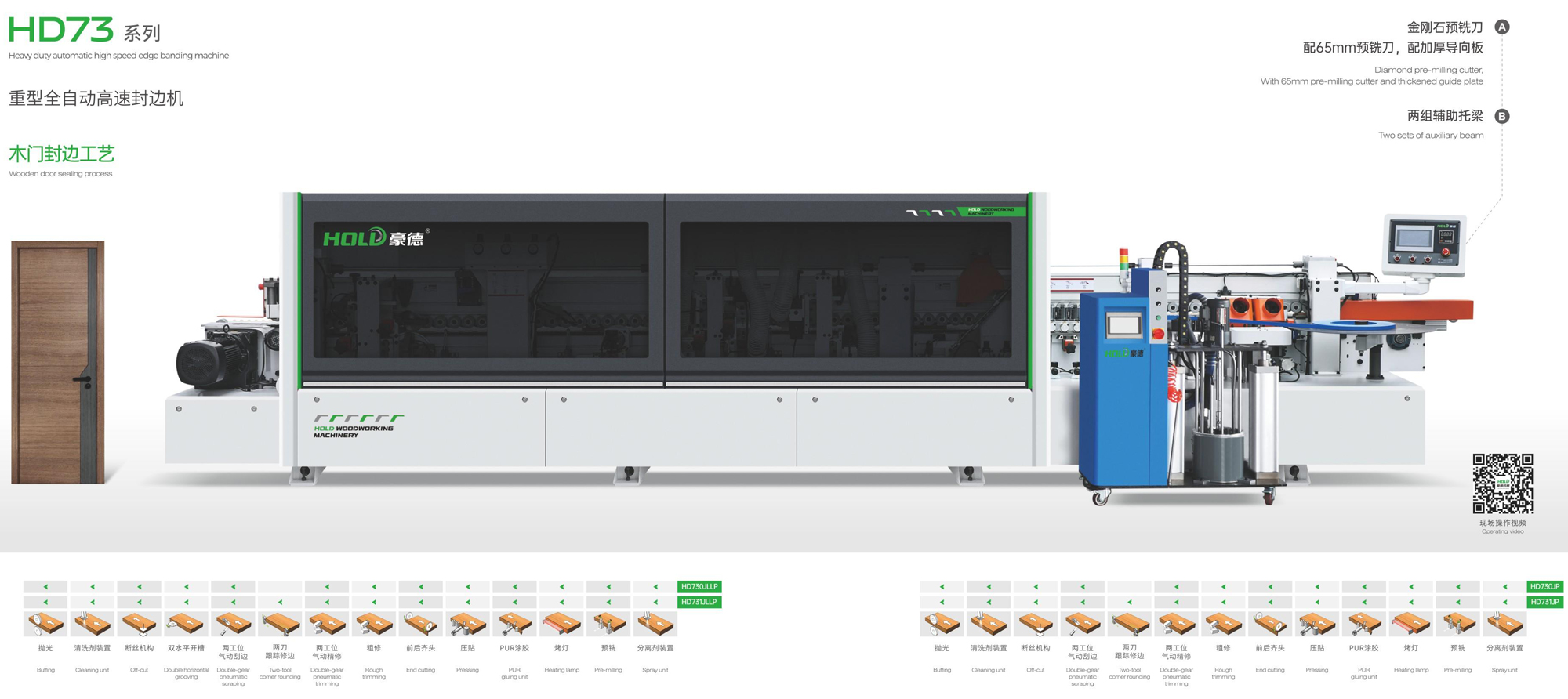

HD73 series automatic high speed edge sealing machine
Automatic edge sealing machine series
Product details
Note: Haode Machinery is constantly studying and improving the product specifications and design details. The above specifications are subject to change without prior notice.
Product advantage
Product application:Custom furniture, panel furniture, cabinets and closets, office furniture
Heavy automatic high speed edge banding machine
Wood door edge sealing process
Diamond prematte with 65mm prematte with thickened guide plate
Two sets of auxiliary joists
Technical parameter
| 设备型号 Equipment type | HD731JP | HD730JP | HD730JLLP |
|---|---|---|---|
| 电动升降 Electric lift | 有 There are | 有 There are | 有 There are |
| 总功率 Gross power | 16.94kw | 16.2kw | 27.2kw |
| 外形尺寸 Overall dimension | 7550x900x1700mm | 6200x900x1700mm | 7140x900x1700mm |
| 进给速度 Feed rate | 14/20/23m/min | 14/20/23m/min | 14/20/23m/min |
| 封边带厚度 Edge band thickness | 0.4-3mm | 0.4-3mm | 0.4-3mm |
| 板料厚度 Sheet thickness | 10-60mm | 10-60mm | 10-60mm |
| 板料长度 Sheet length | ≥120mm | ≥120mm | ≥120mm |
| 板料宽度 Sheet width | ≥100mm | ≥80mm | ≥80mm |
| 工作气压 Working pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| 最小板尺寸 Minimum plate size | 120x100mm | 120x80mm | 120x80mm |
